The experiment was a group project for the course Human Cognition in Human-Computer-Interaction, held by Robert Ramberg, at the Stockholm University Department of Computer and System Sciences during the autumn semester 2019, by Sebastian Veuskens, Thomas Castro, Thibaud Marchand and Lena Spitz.
An extended analysis was performed by Sebastian Veuskens in January 2023 and is marked as such in the results section.

In this day and age, the digitized and multimedia world produces an enormous amount of visual information each second that has to be processed and memorized by humans. Therefore, many aspects of our daily life depend on the capacity of human memory, making it a broad research field with many subfields of interest. One of these subfields is short-term memory - a limited storage for information which will be forgotten as new information comes in, unless the information is rehearsed, repeated or processed in depth with high concentration. The following study investigates the effectiveness of different processes within this short-term memory.

Content

Introduction

In this day and age, the digitized and multimedia world produces an enormous amount of visual information each second that has to be processed and memorized by humans. Therefore, many aspects of our daily life depend on the capacity of human memory, making it a broad research field with many subfields of interest. One of these subfields is short-term memory - a limited storage for information which will be forgotten as new information comes in, unless the information is rehearsed, repeated or processed in depth with high concentration. This leads to a higher probability of committing it to long-term memory. The capacity of the short-term memory used to be equalled with the memory span, meaning the amount of information one is able to repeat back immediately after hearing, and is about seven to eight items [1].

Theoretical Background

Experiments by Baddeley, Thomson and Buchanan in 1975 and Vallar and Baddeley in 1982 provided evidence for the phonological loop, as participants could remember more short words than long words at a time. Length of a word was measured by the number of syllables. The amount of words remembered strongly correlated with the amount of syllables participants were able to say in a certain amount of seconds. According to Baddeley, humans can thus keep information worth 1.5 to 2 seconds in the working memory [1].

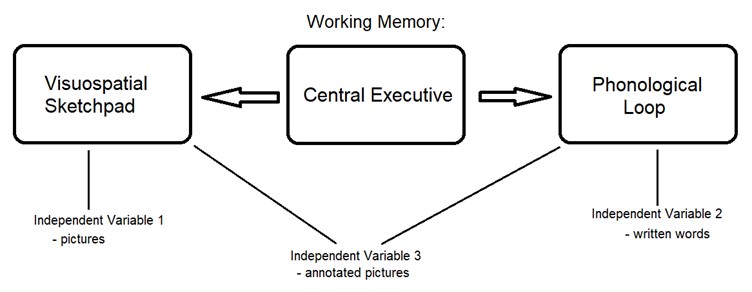

The distinction between short-term and working memory is often imprecise since these memory types are based on different theoretical concepts and are supposed to overlap each other to a large extent. The two are hard to differentiate, but ultimately working memory is meant to keep information readily available to perform a task, and not to process the information in order to commit it to long-term memory [1].

The use of multimedia over single media intuitively leads to the assumption that it encourages more ways of engaging with the presented material, thus enabling deeper processing and therefore heightening memory performance. However, studies have so far not found evidence that this is the case [4]. Another study by Shepard in 1967 indicates that the visual memory has a greater capacity than the verbal one. However, it did not focus on the working memory [1]. In contrast, our approach focuses on the ability to process information in a limited period of time. Furthermore we reached a higher level of comparableness since the same information was presented both in picture form and in written word form.

In total, 30 individuals were tested. Each individual was shown a set of items, presented either as pictures, words, or pictures and words combined. The amount of remembered words functioned as an indicator that reported how much the different types of presentation facilitate the capacity of human memory. The experimental design consisted of the following variables:

Design

Our experiment was structured into three different types of presentations, namely presentation of words, pictures or pictures and words combined. Thus the design of our experiment consisted of three experimental groups whose results were compared to each other, following the design concept of Fred N. Kerlinger [5].

We chose a Between Subject Design, meaning each participant was part of one group assigned to one value of the active independent variable. Thus, everyone had to memorize the same items (control variable) and there was no learning effect as would occur if each participant had been presented with all three different values of the independent variable in a within subject design [6]. The final 20 items used for the experiment are illustrated below.

• Detailed Methods

Results

In the final experimental study 30 participants took part, ten for each independent variable. All participants were currently enrolled at a university. Slightly more than half of our participants were in age group 18-22, while one third was in age group 23-26. Two participants were in age group 27-31 and one was in age group 31-35. With 17 female and 13 male participants the results should be fairly unbiased in regards to gender. All participants understood the instructions, consented to taking part in the experiment and voluntarily gave us their results of the experiment to evaluate.

Overall participants correctly remembered between 6 and 18 items with a total average of 11.73. Below a comprehensive record of the results.

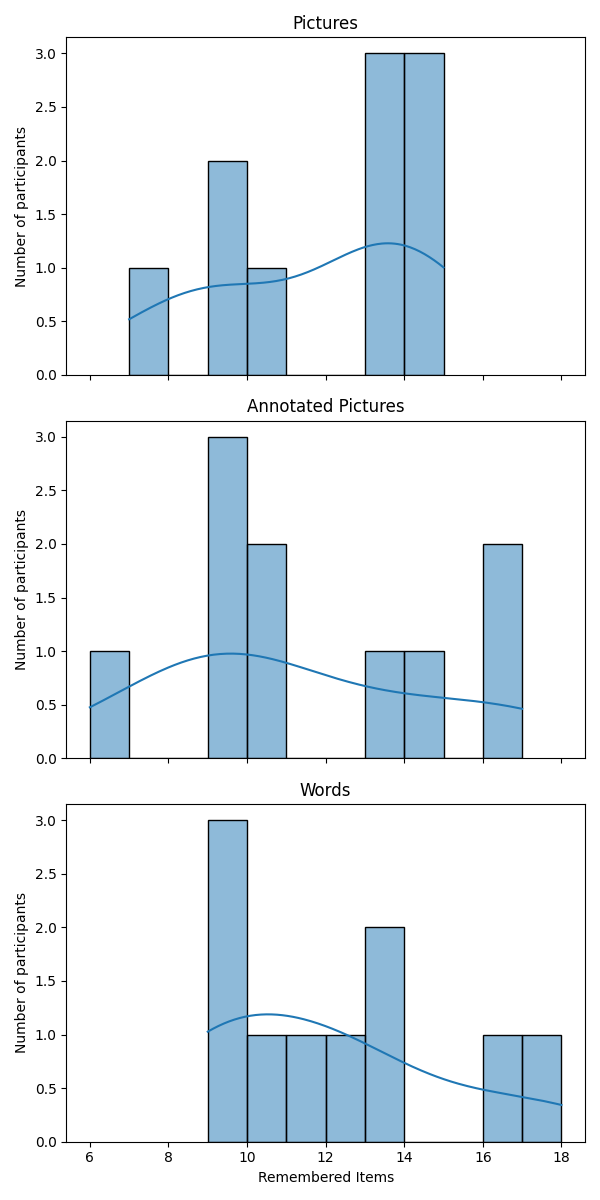

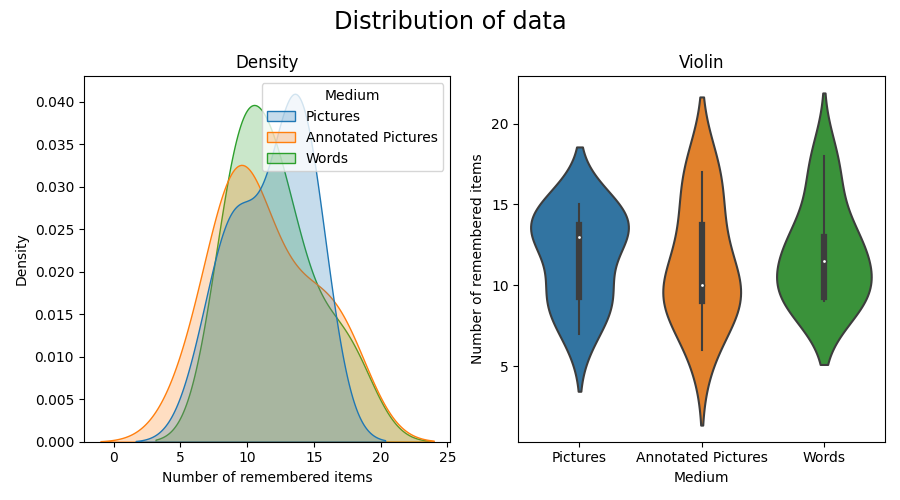

A visualisation of the recorded data is displayed below, with respect to the different groups.

Participants presented with annotated pictures overall remembered the least amount of items, with an average of 11.4 and a median of 10. Depending on which statistic measure is taken into account, pictures performed better than written words with a median of 13 compared to a median of 11.5, while the average number of correctly remembered items of words is 12 and the average of pictures is 11.8. According to the relatively high variance in comparison to the average, a reliable result would require a lot more participants, especially since our subjects were chosen and assigned to the independent variable values randomly and not by matching [7].

It is crucial to investigate the significance of these recorded differences between groups. In addition to the submitted paper, in the following two statistical tests were performed on the data. Due to our study design, we can assume both inter- and intra-group independence.

Wilcoxon Mann-Whitney

A suitable non-parametric test for the difference of the underlying distributions between two different groups is the Wilcoxon Mann-Whitney test. Since only 2 groups can be compared at the same time, the test is applied for all three possible pairs of groups.

Assumptions

• All groups have the same distribution shape, except for the median

Null-Hypothesis

• Both groups have the same median (and thus also the same distribution)

Drawbacks

• It is not clear whether in our case a similar distribution shape can be assumed for all groups
• Some information might be lost due to the loose requirement of only ordinal (and not interval) scale of the recorded data

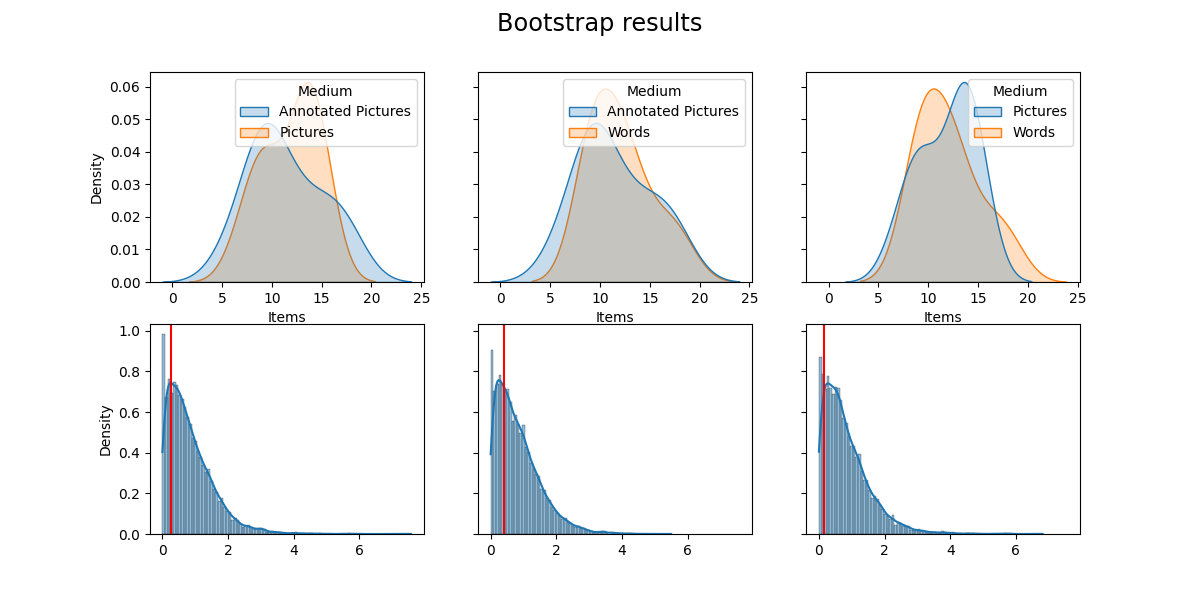

Alternative: Non-parametric bootstrap

With this testing procedure, we can test whether the expectation value of the underlying distributions differ. A centering computation is applied on the data in order to obtain the Null-Hypothesis distribution.

Characteristics

• Suitable especially also for small sample sizes
• Test only for discrepancy between expectation values of two groups, no similar shape of distributions is assumed

Null-Hypothesis

• Both groups have the same mean

Test outcomes

P-values

No significant differences between the mean or median of the different groups can be derived from the data. The p-value strongly rejects a possibly significant difference between all pairs of the three groups and accepts the Null-Hpyothesis in all cases for both tests.

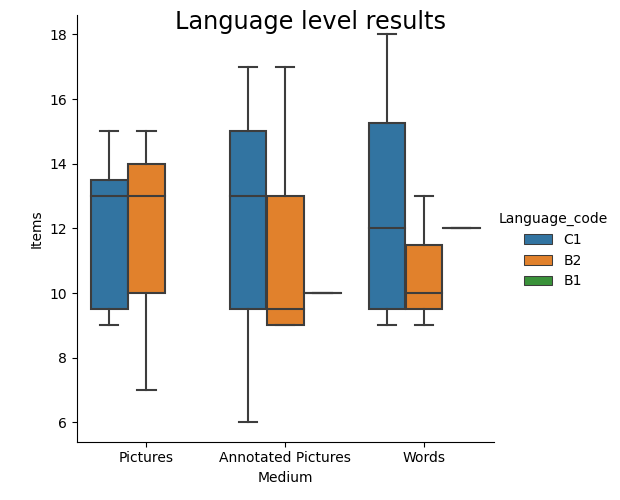

The English level of participants seemed to have a big influence on the result. On average, participants with a higher level of English also remembered a higher number of items correctly, regardless of how the items were presented. 53% of participants had a English level of C1 and remembered 12.19 items correctly, while the 40% with an English level of B2 correctly remembered 11.25 items. The remaining 7% of participants with a B1 English level recalled 11 items correctly on average. The Boxplot below illustrates the difference, showing that people who had a higher English level remembered higher amounts of items more frequently than lower levels.

When asked, 70% of all participants confirmed they used the phonological loop to remember the items, and 76,6% used the visuospatial sketchpad at least partially. Yet when looking at the different variables, only half of the participants presented with words indicated that they used the phonological loop, while 70% of participants presented with annotated pictures and 90% of participants presented only with pictures said they did repeat the names of the items in their mind to memorize them. 60% of participants presented with written words said they imagined the items visually in their mind. For participants who were presented with either just pictures or annotated pictures it was 90%.

Discussion

Contrary to our hypothesis, both the average and median amount of remembered words was smallest for the group shown annotated pictures and highest for the group shown only words. Removing the extreme cases (the minimum and maximum amount of remembered words) influences the order of the average of remembered words towards the presentation consisting of only pictures. However, the applied statistical tests do not support any evidence for a significant difference in the performance of the short-term memory capacity of the three learning methods. This might be due to the relatively small amount of participants in our study.

Although the experimental study we conducted does not precisely quantify the capacity of the different types of memory systems (phonological and visual sketchpad) and there might be slight changes, our results suggest that multimedia contents are not necessarily superior to single media usage in facilitating the capacity of information. Therefore, our results support common reviews that point out that there is no evidence that a multimedia approach has advantages for learning or memory performance. Instead, any advantages that have been found in past studies could be explained by other surrounding factors unrelated to the multimedia presentation [8, 9].

An interesting aspect of our results is the distribution of methods used by the participants to remember the items. Contrary to our previous expectations, the most frequent use of the phonological loop seemed to occur in the group shown only pictures and the least use seemed to occur in the group only shown words, as described in our results. Since the phonological loop and the visual sketchpad are very complex and their mechanisms are still subject of modern investigations [10], we do not have the possibility to verify the answers of the participants regarding their used type of memory. However, this might support research results that indicate that written words are not necessarily bound to the phonological loop but can also be processed in the visual sketchpad of working memory [11].

People who wrote they created a story in their mind performed significantly better than the rest. This indicates that learning methodology influenced the amount of items participants could remember. Embedding a list of items into a meaningful context also helped people to remember. This is in accordance with Anderson [1] and a study by McAninch, Austin and Derks where participants remembered more nonsense pictures that had a humorous caption than pictures with a descriptive one [12]. This shows that processing information on a deeper level (like finding it funny, or making up a story) facilitates memory performance [1].

Furthermore the same study provides an explanation why the group with annotated pictures performed worse than the group shown either pictures or words only. Our participants tended to give back the exact same words which they saw during the presentation, even if they wouldn't have used those exact words to describe the presented pictures.

Therefore, Austin's and Derks' findings are consistent with our results, because the presentations with only words or pictures left more space to create some meaningful context for each participant.

When evaluating the results, it turned out that the average English level of the participants that were shown the annotated pictures was lower than the English level of the two other groups. Therefore the relatively poor performance of the group that was shown the annotated pictures could to some extent be caused by coincidentally lower English level. Conducting the experimental study to participants with their mother tongue equal to the language of the experimental study would eliminate the influence of processing information in a foreign language.

Limitations

Conclusion

We conducted an experimental study about the working memory's performance in regards to remembering pictures, written words and annotated pictures. 30 participants took part in the study, ten for each type of presentation. While all groups performed similarly, the picture and word groups tied for the first place based on the statistical value chosen for evaluation. The group exposed to annotated pictures performed the worst, despite the intuitive assumption that multimedia presentation would make items easier to remember.

However, these results are congruent with those of other studies that indicate that multimedia presentations take away the freedom to form an individual way of processing what is presented. The importance of processing information rather than just registering it also showed itself in the significantly higher performance of participants who remembered items by combining them in a story in their minds, rather than just trying to remember the items on their own.

Another influence factor was the English level of the participants. Both that and the strategy for remembering items would be valuable additional control variables for further studies.
